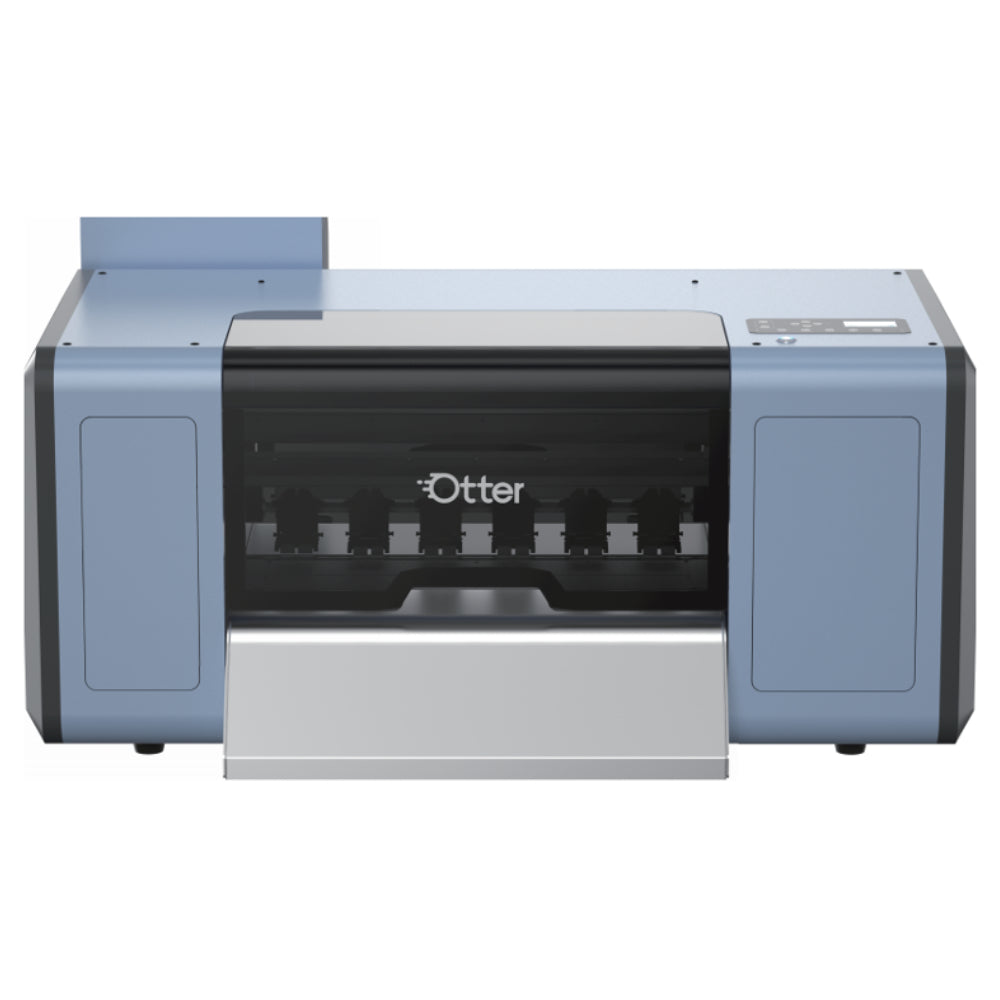

Hardware - Otter Pro DTF Printer - 42cm (Ex-Demo)

PLEASE NOTE THAT THIS IS AN EX-DEMO MACHINE THAT WAS IN USE AT THE PRINTWEAR & PROMOTION SHOW IN BIRMINGHAM EARLIER THIS YEAR. IT IS HAS BEEN FULLY CLEANED AND HAS A NEW PRINTHEAD READY TO CONNECT ONCE THE ITEM IS PURCHASED. IT IS PRICED TO CLEAR AND COMES WITH A 6 MONTH WARRANTY.

WIDE APPLICATION DTF technology makes custom prints on cotton fabrics possible and opens up new opportunities for the custom apparel industry. It performs amazingly well on almost all kinds of fabrics, including t-shirts, safety vests, hats, masks, shoes, banners, towels, aprons, bags, slippers, PU notebooks, coasters and more.

Ink Supply System
Clear ink markings save the hassle of pouring the wrong ink. The built-in alarm sensor reminds you to add ink in time, minimizing damage to the printer.

THK Mute Linear Guide Rails
Enhance operational stability with minimal noise.

Auto White Ink Circulation
The built-in peristaltic pump with moderate pressure and good gas sealing protects the print head. Continuous circulation of white ink effectively prevents sedimentation and lowers the probability of printhead clogging.

Control Panel
The user-friendly control panel enables you to manage the speed, power, and temperature of the powder and drying system, providing a clearer picture of the printing status.

Features

• Printhead: 2 x EPSON i1600 print heads

• Ink Color: H1:CMYK H2:W1 W2 W3 W4
• Print Speed:
  • 720*1200dpi(4pass) 3.5-5.0m²/H
  • 720*1800dpi(6pass) 2.5-3.5m²/H
  • 720*2400dpi(8pass) 2.0-3.0m²/H

• Print Width: 0-448mm/0-17.6in Max
• Power: 3300W MAX±5%(Printer Included)
• Voltage: 110V/220V±10% 50Hz-60Hz
• Powder Capacity: 1.0kg
• Ink Stirring System: White Ink Automatic Stirring Circulation
• Pinch Roller: Front and Rear Manual Controls
• Connection Method: Gigabit Ethernet Port (PC must have Gigabit Ethernet Card)
• Printer Carriage: Without Anti-Collision System
• Sensor System: Low Ink Alarm,Automatic Film Sensor
• Heating System: Three Stages Independent Heating
• Supported Formats: PRT,PRN,BMP,JPG,PNG,TIFF,EPS,PDF
• Print Mode: Uni-direction / Bi-direction
